Motor vibrating feeder

Technical Parameters

Instruction

Motor vibrating feeder is widely used in mining, metallurgy, coal, building materials, light industry, electric power, chemicals, grain and other departments, which is be used to convey the massive, granule and powder materials from the warehouse or hopper into the accepting device evenly and continuously or quantification ally.

Motor vibrating feeder three

Vibrating motor

It also can be used with vibrating screen,vibrating feeder, vibrating conveyor,vibrating ore drawing machine, vibrating shakeout machine, vibrating platform etc.

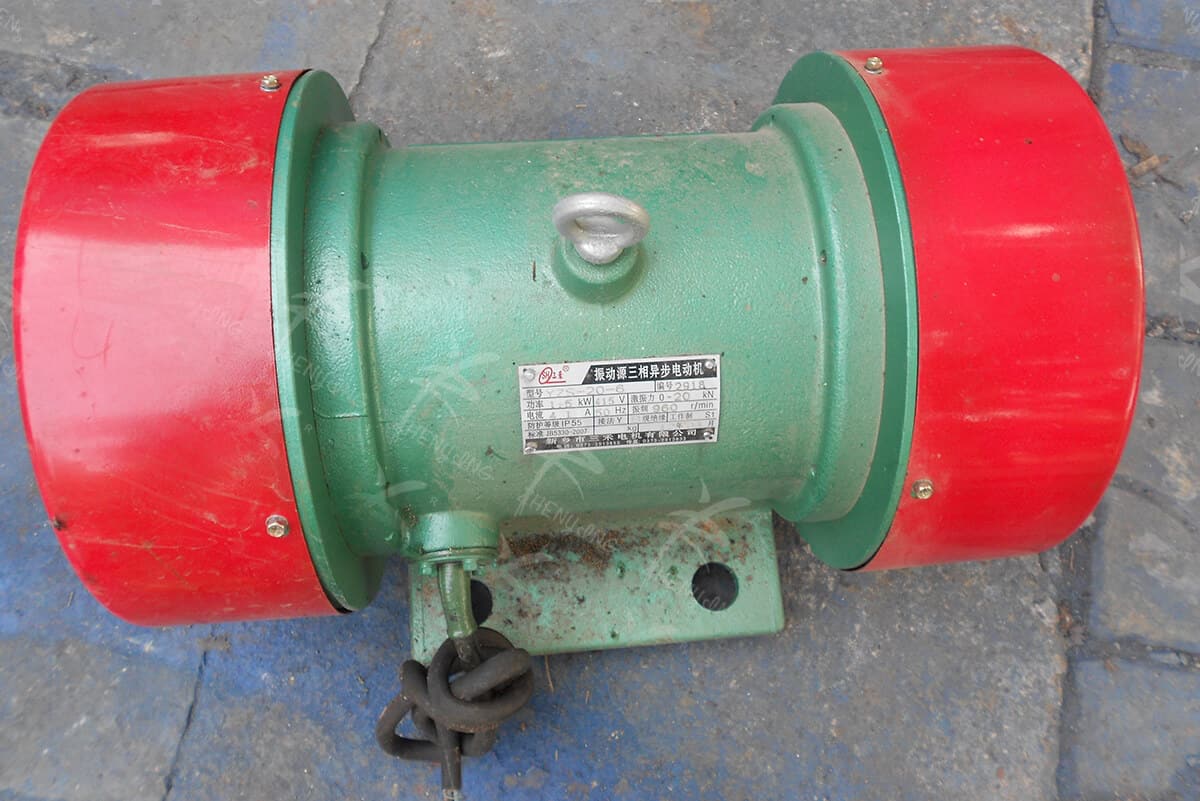

Motor vibrating feeder motor

Feature

  1. Small size,light weight,simple structure, easy installation, low maintenance and low cost.
  2. Universal type is open type,if no special requirements as a feeder to use.
  3. Sealed-type is applied to feeding under the situation full of dust.
  4. 4.Tube-type is applied for the fragile particles,more pollution and fragile materialsautomatically, continuous operations

Technical Parameter

Model Feeding granularity (mm) Quantity of output Motor type Voltage (v) Power (Kw) Vibration frequency (Hz) Double-amplitude (mm) Exciting force (Kn) Weight(Kg)
GL-25 <50 25 YZU-5-4 380 0.4*2 25 2mm-3mm 5*2 174
GL-60 <70 60 YZU-8-4 380 0.75*2 25 2mm-4mm 8*2 242
GL-80 <80 80 YZU-8-4 380 0.75*2 25 2mm-4mm 8*2 256
GL-100 <100 100 YZU-10-4 380 1.0*2 16 2mm-5mm 10*2 321
GL-200 <150 200 YZU-17-4 380 0.75*2 25 2mm-5mm 16*2 372
GL-300 <150 300 YZU-17-4 380 0.75*2 25 2mm-6mm 16*2 556
GL-400 <180 400 YZU-20-4 380 2.0*2 16 2mm-5mm 20*2 606
GL-500 <500 500 YZU-30-4 380 2.0*2 25 2mm-5mm 30*2 886
